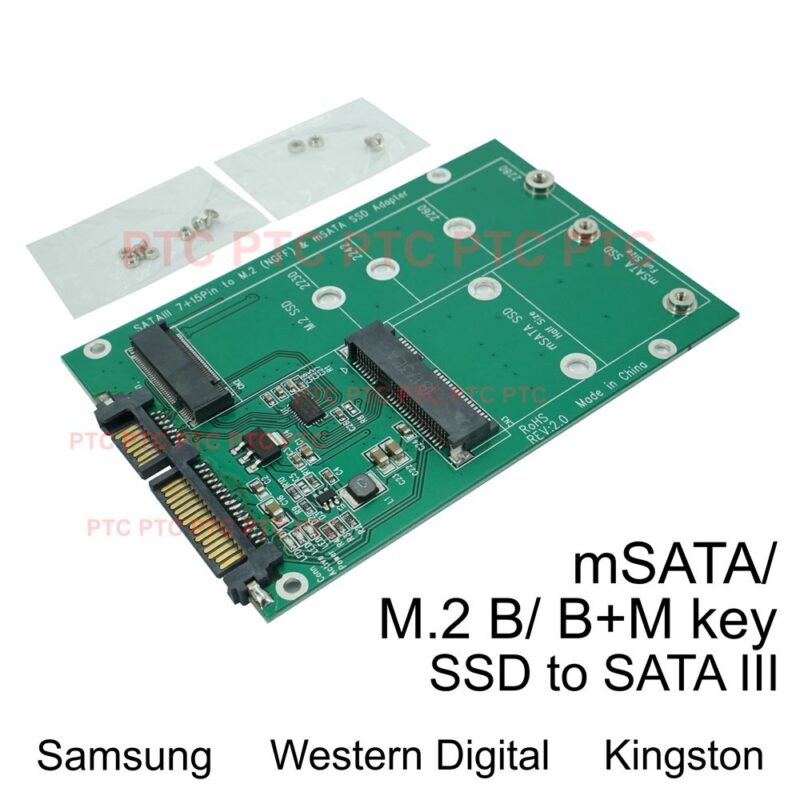

M.2 (NGFF) & mSATA SSD TO SATA III 2 in 1 Adaptor Converter

M.2 (NGFF) B-Key SSD/B+M Key SSD
mSATA B-Key SSD /B+M Key SSD
to SATA III 22-pin
Model: SA-130

$28.85

In stock

Shop PTComputers with confidence
Sent within 1-business day from Melbourne. 24/7 email support.
Secured transactions powered by Paypal.
30-day returns. 1-year warranty.

  •  This SSD adapter has 2 different Input (A), but won’t work if both is plugged in at the same time
  • Enhance your system performance by utilising the next gen speed of an M.2 NGFF interface SSD or mSATA module SSD in any SATA applications
    • Maximising the full potential of your SATA interface with reduced bottle necking
    • The ideal solution for data backup or data transfer
  • With this SSD adapter, you can easily access your M.2 NGFF B or B+M key SATA based SSD/ mPCI-e (mini PCI-e) mSATA (mini SATA) SSD from another laptop or desktop through a SATA 22-pin connector
    • Convert your M.2 NGFF B-Key SSD into a SATA III SSD
    • Convert your M.2 NGFF B+M Key SSD into a SATA III SSD
    • Convert your mini PCI-e mini SATA SSD into a SATA III SSD
    • Convert your mSATA SSD into a SATA III SSD
  • Input (A1)
    • for M.2 NGFF B-Key SSD
    • for M.2 NGFF B+M Key SSD
    • M.2 B-key female
    • (SSD must be M.2 B-key or M.2 B+M key connecter, NOT M.2 M-key)
    • (SSD must be SATA channel, check manufacturer of SSD)
    • (NVMe SSD are PCI-e channel)
  • Input (A2)
    • for mSATA SSD
    • for mPCI-e mSATA SSD
    • NOT compatible for:
      • mPCI-e SATA SSD
      • mPCI-e SSD
    • 8+18pin female (SSD must be mSATA or mPCI-e mSATA connector)
  • Output (B)
    • SATA III 22-pin (7+15pin) female
    • Backward compatible with SATA I/ SATA II
    • Specialised Gold connectors
      • Eliminate corrosion
      • Maximises data transfer
      • Ensures lifelong industry leading connection quality
    •  Up to 6Gbps
  • Compatible M.2 NGFF SSD sizes:
    • 22*30mm
    • 22*42mm
    • 22*60mm
    • 22*80mm
  • Compatible mSATA SSD sizes:
    • Half size: 30*26.8mm
    • Full size: 30*50.95mm
  • Package includes:Material: Aluminium
    • 1x SSD adapter converter card
    • Mounting screws kit (screws and washers)
  • Size of adapter converter cardNo drivers needed
    • Length: 99mm
    • Max Height: 5mm
    • Main board height: 1mm
    • Width: 65.75mm
  • No additional power supply needed
    • Relieve stress from rest of system
  • Cancel original SSD password
    • new computer or laptop won’t recognise the SSD if old password still exists
  • Voltage compatibility:Provides max current of 3A
    • 3.3V
    • 1.8V
  • Model #: SA-130
  • Supports:
  • M.2 NGFF B-Key SSD to SATA 22-pin adapter converter card
  • M.2 NGFF B-Key SATA based SSD to SATA 7+15pin adapter converter card
  • M.2 NGFF B+M Key SSD to SATA III 22-pin converter card
  • M.2 NGFF B+M Key SATA based SSD to SATA III 7+15pin adapter card
  • mini PCI-e mini SATA SSD to SATA adapter card
  • mPCI-e mSATA SSD to SATA III adapter converter card
  • mini SATA SSD to SATA 22-pin (7+15pin) converter card
  • mPCI-e mini SATA SSD to SATA III 22pin (7+15pin) converter card
  • M.2 NGFF B/B+M key SATA based SSD to SATA III 22pin (7+15pin) combo 2 in 1 adapter converter card
Model

AD-Sata-130
